Underfloor Heating Projects with FineHVAC new v.24

When it comes to the Underfloor Heating App of FineHVAC24, a series of new features have been also included:

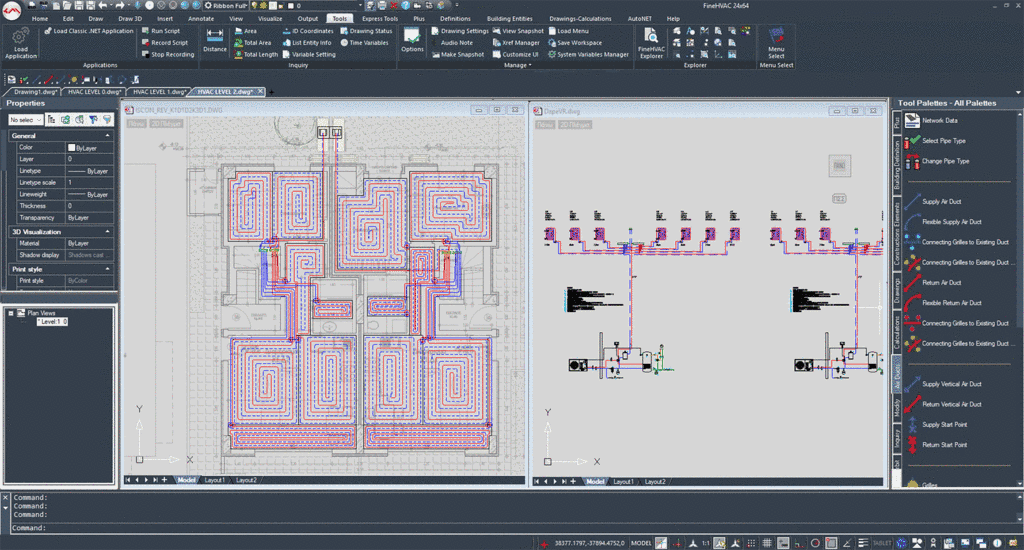

• Design of underfloor network in an upgraded environment-interface of high ergonomics and functionality, with a multitude of new tools

• Faster network design and creation of floor plans and 3D drawings thanks to the major upgrade of the design engine

• Network recognition/identification for automatic update of the calculation sheets

• Capability to design normalized circuit pipes

• Easy definition of an underfloor system directly from the space geometry

• Option to select a clockwise or counterclockwise circuit

• Ability to define usage and thermal resistance directly through the circuit

• Real time update of the circuit length during the design process

• Automatic update of the floor plan drawings

• Automatic creation of the vertical chart/diagram either for a meander or a snail type

• Detailed bill of materials (i.e. pipes and fittings per diameter, pipe length analysis-synthesis per subsection)

• Creation of the axonometric diagram including the detailed results

• Conversion of a 2D floor plan into a 3D drawing

Underfloor Heating is a part of the FineHVAC including also single and twin pipe heating, fan coil heating & cooling, airduct networks and air-conditioning system units.
