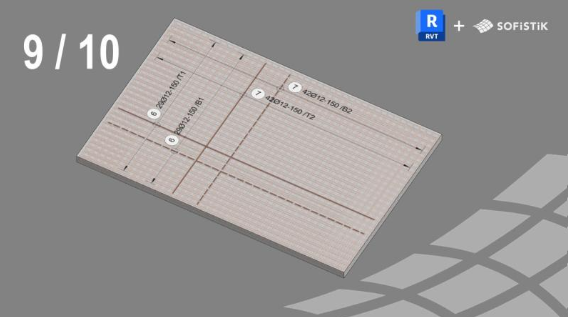

Revit + SOFiSTiK Reinforcement 9/10 - Area Annotations

04.11.2023

Annotating areas is handled a little bit differently that singular rebars. to keep an overview in bigger projects, it is necessary to properly display every single rebar in the right way. This video series already taught you about filter options, but coming to area reinforcements, you still need a parameter to filter for. SOFiSTiK Reinforcement provides a Layer - tool, which creates a parameter for this exact reason. Hide and Tag is a powerful SOFiSTiK-tool, that allows you to create clear and easy to understand views with detailing and distribution information of your rebars. User specific bending schedules are easily created and modified to support the complexity of every real-life project.
