Perfect your workflow with mechanical engineers: export and organise in one click all your REVIT model 2D floor plans with the free RVT-Connect plugin.

. RVT-Connect is a free plugin for REVIT developed by the creators of AUTOFLUID, the leader in mechanical CAD. It does the job for you, quickly and very well. Easy to use, RVT-Connect is designed for all REVIT users who work with or inside mechanical engineering offices.

It analyses your model and extracts each floor plan in a series of named and ordered files, together with the spatial coordinates of each level, ready for delivery. The draftsmen or mechanical engineers can simply use the floor plan to design networks on each level and, if they’re using AUTOFLUID, they can import the building levels directly into their project.

Designed as a gateway between REVIT and AUTOFLUID, RVT-Connect speeds up and facilitates the workflow of all mechanical engineers.

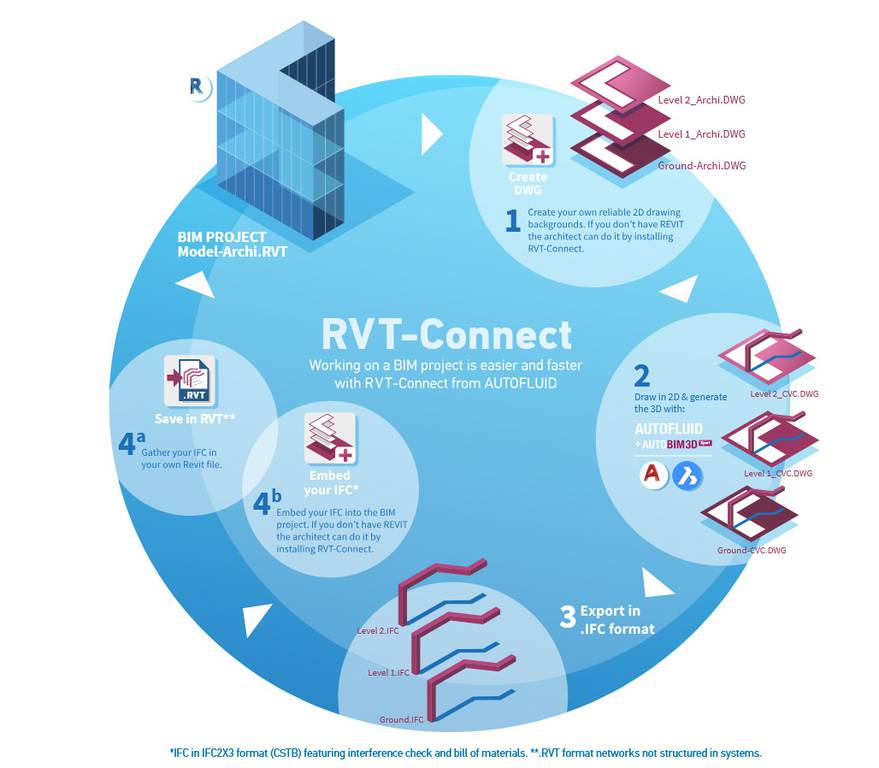

Thanks to the building's level information, collected in the REVIT model, AUTOFLUID is ready to model your networks in 3D in AUTOFLUID. Then all you have to do is insert them automatically into the REVIT model in the right place and to the right scale, again using RVT-Connect. Continuity is assured and errors avoided.

Get RVT-Connect for REVIT free of charge.

Find out more about AUTOFLUID, the leading software package for designing and drawing HVAC fluid network plans in French design offices.

Would you like to find out more? Book your free demonstration and trial version now.
